Programable PLL RF Modulator

This modulator takes the composite A/V output from your STB etc, and converts it into to a standard UHF TV channel for distribution to TV's. The TV channel is selectable and is displayed on the modulator's front panel.

Features:

• Microprocessor controlled PLL modulator
• Audio subcarrier selectable: 5.5/6.0/6.5MHz
• RF loop input
• LED channel number display
• Output level adjustable
• UHF 21-69
• Double side band modulation for non-adjacent usage

Documentation:

 Setting up a programmable RF modulator

 User Manual for the M100PLL programmable RF modulator

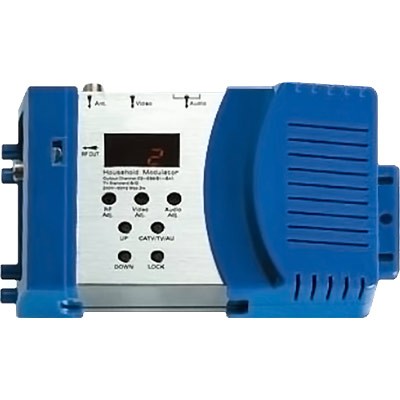

Colour may vary from picture shown

Warranty: 1 year warranty against manufacturing defects.
