Universal KU Band LNB
Description
Details
The Universal Ku band LNB allows 10.7-12.75GHz Input Freq signals to be received. Content broadcast on Intelsat 18 is broadcast in this range, this LNB is recommended for use with Intelsat 18, it can be used with most other Ku band applications including Freeview also.
Note: You can't use a 22KHz switch with a Universal LNB as the 22KHz switch tone is already used to select the 10.6GHz L.O.

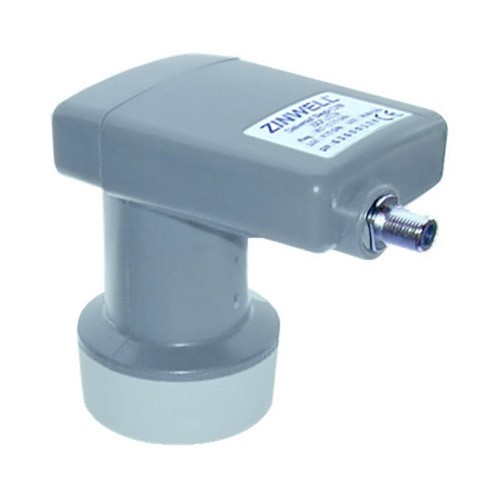

The LNB may differ from the one that is pictured.
This LNB will work with Freeview.
Warranty: 1 year warranty against manufacturing defects.
Additional Info
Additional Info
| Enclosure Type | High quality UV tolerant plastic enclosure |
|---|---|
| L.O. Frequency | 9.75 and 10.6GHz |
| Input Frequency Range | 10.7-12.75GHz |
| Noise Figure | 0.5dB (Typ.) |
| Gain Flatness | ±0.5dB/27MHz |
| Conversion Gain | 55dB (Typ.) |
| Cross Pol. Isolation | 28dB (Typ.) |
| Image Rejection | 45dB (Typ.) |
| Input Interface | Waveguide WR-75 |
| F/D Ratio | 0.6 |
| Throat Diameter | 40mm |
| Output Connector | 75 Ohm F Type Female |
