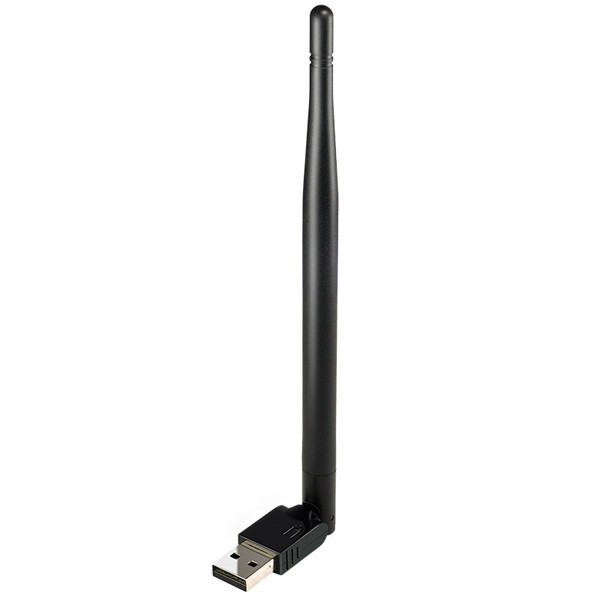

The High Power 802.11n WiFi Adaptor for UltraPlus HD PVRs allows you to install the UltraPlus X-9200HD PVR, F-9000HD PVR, 980HD Micro PVR or 900HD Micro PVR in the most convenient location available, without the cost of running network cables.
The adapter adopts high power design with transmission output power up to 500mw, which offers up to 8 times the range of conventional adapters. It features a 5 dBi External Detachable Antenna that can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, the antenna can also be replaced with standard RP-SMA antenna to enable wider wireless coverage.
Its auto-sensing capability allows high packet transfer up to 150Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations. It can also interoperate with all 802.11b, 802.11g and 802.11n products.
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
•150Mbps (Dynamic) Wireless Signal Rate
• Frequency Range: 2.4-2.4835GHz
• Maximum Wireless Transmit Power: 27dBm EIRP
• Wireless Security: WEP, WPA, WPA2
• 90.8 x 60.8 x 24.5mm
• Hardware Interface: Hi-Speed USB2.0 connector
Using WiFi Adaptors with the UltraPlus HD PVRs
