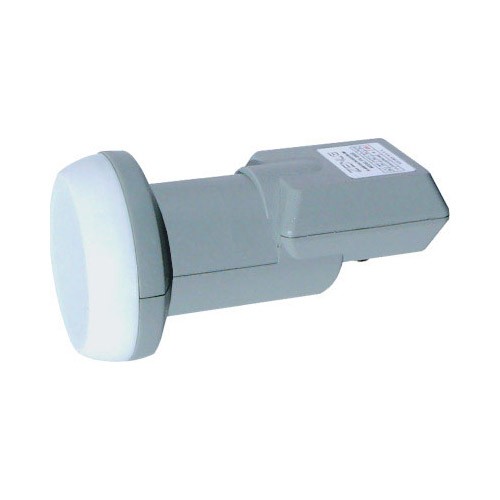

Low Noise 11300MHz L.O. KU Band LNB
Description
Details
The Low Noise Ku band LNB sets a new benchmark for signal quality and rain fade tolerance.
This LNB offers the best performance on the Freeview transponders of the 11300MHz L.O. LNB's available from Freeviewshop.
It allows 12.25-12.75GHz Input Freq Signal to be received. Sky, Freeview and most other content available on KU band in NZ is broadcast in this range.
Documentation:
Instructions for setting the skew
Warranty: 1 year warranty against manufacturing defects.
Additional Info
Additional Info
| Enclosure Type | High quality UV tolerant plastic enclosure |
|---|---|
| L.O. Frequency | 11.3GHz (11300MHz) |
| Input Frequency Range | 12.25-12.75GHz |
| Noise Figure | 0.6dB (Typ.) |
| Gain Flatness | ±1dB/36MHz |
| Conversion Gain | 65dB (Typ.) |
| Cross Pol. Isolation | 20dB (Typ.) |
| Image Rejection | 45dB (Typ.) |
| Input Interface | Waveguide WR-75 |
| F/D Ratio | 0.6 |
| Throat Diameter | 40mm |
| Output Connector | 75 Ohm F Type Female |
