3GHz Freeview RG6 Satellite Cable - White

3GHz Freeview RG6 Satellite Cable - White

Be the first to review this product

High quality RG6 Coaxial cable for use with Satellite Receivers/Dishes. You can select the F-Type connectors you would like installed onto the cable below, screw on type connectors can be removed for installation. Screw on connectors are for inside use only. For outside use select PPC connectors.

Availability: In stock

$2.80

* Required Fields

$2.80

Description

Details

High quality RG6 Coaxial cable for use with Satellite Receivers/Dishes. You can select the F-Type connectors you would like installed onto the cable below, screw on type connectors can be removed for installation. Screw on connectors are for inside use only. For outside use select PPC connectors.

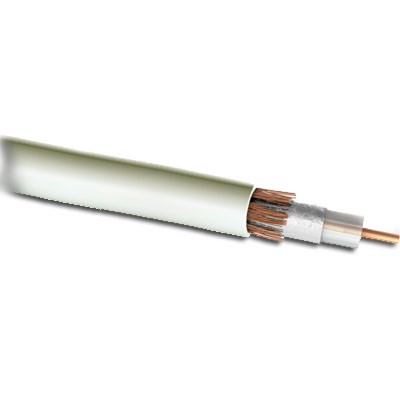

Standard construction:

• 1.02 mm inner conductor
• Gas injected foam PE dielectric
• Outer shield: Duobond II + aluminum braid shield
• Nominal O.D 6.91mm
• Jacket PVC black
• sweep tested up to 3GHz

Electrical Characteristics:

• Impedance 75 ohm

Attenuation:

• 5MHz - 1.64 dB/100m
• 55MHz - 4.59 dB/100m
• 211MHz - 8.53 dB/100m
• 500MHz -13.45 dB/100m
• 750MHz - 16.73 dB/100m
• 862MHz - 18.04 dB/100m
• 1000MHz - 19.68 dB/100m
• 1450MHz - 25.59 dB/100m
• 1800MHz - 28.21 dB/100m
• 2250MHz - 32.15 dB/100m
• 3000MHz - 37.07dB/100m
